2015 Isuzu NPR IBT PWL
Available
Visit our Store
- Platinum Chrysler Dodge RAM Jeep
-
65 TX-557 Spur
Terrell, TX 75160
- Sales: 469-294-8010
- Service: 469-535-7712
- Parts: 469-971-2106
Vehicle Information
VIN:
JALB4W177F7400129
Stock #:
F260295A
Model Code:
NF204
-
Body Style 2D Standard Cab -
Exterior Color White
-
Mileage 186,788
-
Engine 4 Cyl - 5.19 L -
Transmission 6-Speed Automatic with Overdrive -
Fuel Type Diesel
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- Turbo Charged Engine
- Cruise Control
Eligible Benefits
All Features
- Truck Application
- GVWR, 14500 lbs (6577 kg) capacity
- Air Cleaner, Dry Paper single element (Donaldson brand). Air cleaner canister standard with air restriction gauge.
- Alternator, 110 AMP with integral regulator
- Battery, Dual 12-V maintenance free, 750 CCA each
- Rear wheel drive
- Front GAWR, 5360 lbs (2431 kg) capacity
- Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
- Front Suspension, 6830 lbs. (3098 kg) capacity. Semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.
- Front Wheels, 16" x 6", 6-hole disc, painted white
- Front Tires, 215/85R16E (10 ply) tubeless radial, all season
- Rear GAWR, 9880 lbs (4481 kg) capacity
- Rear Axle, R040, Full-floating single-speed, 11,020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
- Rear Axle Ratio, 4.56:1
- Rear Suspension, 9880 lbs. (4481 kg) capacity. Semi-elliptical main and auxiliary multi-leaf springs. Includes shock absorbers.
- Rear Wheels, 16" x 6", 6-hole disc, painted white
- Rear Tires, 215/85R16E (10 ply) tubeless radial, all season
- Wheelbase, 132.5" (336.6 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu. in. and RBM 316,800 lb-ft/in per rail.
- Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.
- Exhaust Brake, vacuum operated
- Exhaust System, Single horizontal with DPF (Diesel Particulate Filter)
- Paint Scheme, Solid
- Cab Mounts, All steel low cab forward, BBC 70.7 in. 45 deg. mechanical tilt with torsion assist
- Daytime running lamps
- Windows, Tinted glass
- Mirrors, Dual cab mounted exterior with integral convex mirror
- Windshield Wipers, Intermittent wet-arm
- AM/FM/CD stereo radio
- Tricot and jersey knit combination cloth covered reclining highback driver seat with single two occupant fold down passenger seat
- Floor mats
- Tilt and telescoping steering column
- Cruise control
- Power windows & door locks
- 4 channel anti-lock brake system
- Daytime running lamps
- EBD (Electronic Brake Distribution)
- Front Frame Rating: - TBD -
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd): 750
- Maximum Alternator Capacity (amps): 110
- Maximum Alternator Watts: 1320
- Total Cooling System Capacity (qts): 19.0
- Gross Axle Wt Rating - Front (lbs): 5360
- Gross Axle Wt Rating - Rear (lbs): 9880
- Curb Weight - Front (lbs): 3978
- Curb Weight - Rear (lbs): 2046
- Gross Vehicle Weight Rating Cap (lbs): 14500
- Gross Combined Wt Rating (lbs): 20500
- Suspension Type - Front: Tapered Leaf
- Suspension Type - Rear: Multi-Leaf
- Spring Capacity - Front (lbs): 6830
- Spring Capacity - Rear (lbs): 9880
- Axle Type - Front: Reverse I-Beam
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front (lbs): 6830
- Axle Capacity - Rear (lbs): 11020
- Axle Ratio (:1) - Rear: 4.56
- Shock Absorber Diameter - Front (mm): 42
- Shock Absorber Diameter - Rear (mm): 42
- Stabilizer Bar Diameter - Front (in): 1.65
- Brake Type: Power
- Brake ABS System: 4-Wheel
- Disc - Front (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 11.5 x - TBD -
- Drum - Rear (Yes or ): Yes
- Rear Drum Diam x Width (in): 12.6 x 3.94
- Front Tire Order Code: I5H/I69
- Rear Tire Order Code: I5H/I34
- Front Tire Size: 215/85R16E
- Rear Tire Size: 215/85R16E
- Front Tire Capacity (lbs): 5360
- Rear Tire Capacity (lbs): 9880
- Revolutions/Mile @ 45 mph - Front: 682.9
- Revolutions/Mile @ 45 mph - Rear: 682.9
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Front Wheel Size (in): 16 x 6
- Rear Wheel Size (in): 16 x 6
- Front Wheel Offset (mm): 127.0
- Rear Wheel Offset (mm): 127.0
- # of Bolt Holes - Front: 6
- # of Bolt Holes - Rear: 6
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Front Bolt Pattern: 6 Hole JIS 8.75"
- Rear Bolt Pattern: 6 Hole JIS 8.75"
- Steering Type: Power
- Steering Ratio (:1), On Center: 18.8 - 20.9
- Steering Ratio (:1), At Lock: 18.8 - 20.9
- Turning Diameter - Curb to Curb (ft): 38.7
- Turning Diameter - Wall to Wall (ft): 44.0
- Frame Type: Ladder
- Sect Modulus Rails Only (in³): 7.20
- Frame RBM (N/A): 316800
- Frame Strength (lbs): 44000
- Frame Thickness (in): 8.5 X 2.76 X 0.24
- Fuel Tank Capacity, Approx (gal): 30
- Aux Fuel Tank Capacity, Approx (gal): 33
- Fuel Tank Location: In frame rail
- Aux Fuel Tank Location: Side frame rail
- Wheelbase (in): 132.5
- Length, Overall w/o rear bumper (in): 224.0
- Width, Max w/o mirrors (in): 81.4
- Height, Overall (in): 90.8
- Overhang, Front (in): 48.4
- Overhang, Rear w/o bumper (in): 43.1
- Front Bumper to Back of Cab (in): 70.7
- Cab to Axle (in): 86.0
- Cab to Axle (in): 110.0
- Cab to End of Frame (in): 153.1
- Ground to Top of Frame (in): 31.1
- Frame Width, Rear (in): 33.5
- Ground Clearance, Front (in): 7.5
- Ground Clearance, Rear (in): 7.5
- Body Length Default Value (ft): 14
- Passenger Capacity: 3
- Front Head Room (in): 38.4
- Front Leg Room (in): 29.5
- Front Shoulder Room (in): 70.7
- Front Hip Room (in): 67.7
- Vehicle Name: Isuzu NPR HD DSL REG AT
- Body Style: Tilt Chassis Cab
- Body Code: RQ2
- Driver Ratio: 1
- Torque @ Clutch Engage (ft-lbs): 265
- Torque Converter: 1.764
- Static Loaded Radius (in): 14.3
- Max Speed For Gradeability: 76
Vehicles You Might Like
2019 Chevrolet Silverado 5500HD Work Truck
VIN:
1HTKHPVK7KH863745
Stock:
Q260441B
Model:
CC56403
-
Call For Price MSRP
-
Call For Price MSRP

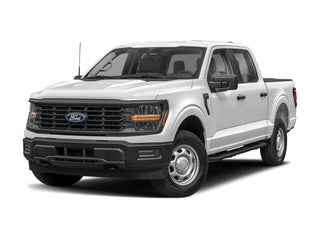

2025 Ford F-150 XL
